Setting up a Terraform CI/CD pipeline with GitHub Actions is one of the most effective ways to automate your AWS infrastructure deployments. In this guide, you’ll learn how to build a complete Terraform CI/CD pipeline with GitHub Actions — from configuring OIDC authentication and IAM roles to running plan and apply jobs automatically on every pull request and merge.

Key Takeaways for Your Terraform Workflow

• Here’s a comprehensive guide on automating the creation of AWS S3 buckets using Terraform and GitHub Actions.

• Readers will learn how to establish a seamless Continuous Integration and Continuous Deployment (CI/CD) workflow. This workflow automatically creates an S3 bucket whenever code is pushed to GitHub.

• The article covers the entire process. It includes writing Terraform code and configuring GitHub Secrets for secure credential management. The article provides clear instructions for setting up the necessary components.

• By the end of the post, you will have a fully functioning automation pipeline. This pipeline ensures efficient resource management. It also secures resource management in AWS.

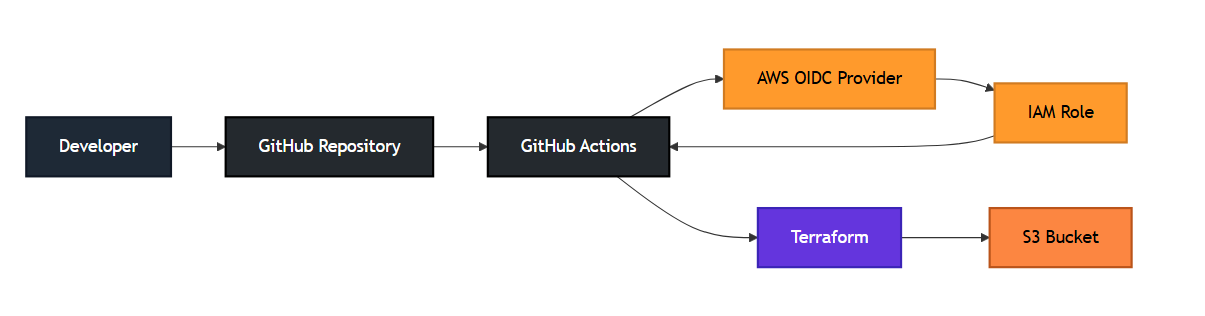

✅ Overview of the Terraform Workflow

This setup consists of a Terraform project and a GitHub Actions workflow. It automates the creation of an S3 bucket in AWS.

What this project achieves:

• Automated Creation: An S3 bucket is automatically created when the code is pushed.

• Secure Authentication: Uses GitHub Secrets to manage AWS login details.

• CI/CD Integration: No manual intervention is required.

🟦 Terraform Code: AWS Resource Definition for the Automation

The main files involved in this process are:

What Does This Terraform Code Create?

• One AWS S3 bucket with specified tags (Environment=dev, Project=terraform-ci-cd) and a name provided from variables.

🟧 GitHub Actions Workflow for Terraform Automation

The workflow defined in .github/workflows/terraform.yml triggers automatically when you push code to the main branch or create a pull request.

Pipeline Steps in the GitHub Actions Workflow

1. Checkout Code: Pulls the latest code from the GitHub repository.
2. Setup Terraform: Installs Terraform on the GitHub server.
3. terraform init: Initializes Terraform modules and provider plugins.
4. terraform fmt: Checks the formatting of Terraform files.
5. terraform validate: Validates the Terraform configuration syntax.
6. terraform plan: Shows the changes Terraform intends to make.
7. terraform apply: Creates the AWS S3 bucket on main branch push.

🟩 Using GitHub Secrets for AWS Credentials

The pipeline retrieves AWS credentials from GitHub Secrets:

• AWS_ACCESS_KEY_ID
• AWS_SECRET_ACCESS_KEY
• AWS_REGION

This approach ensures that credentials are not exposed in the code.

🟫 When Does the Automation Run?

The pipeline is triggered by:

• A push to the main branch

• A pull request to the main branch

Output of the Terraform Workflow Execution

After running the pipeline, Terraform will output:

• Bucket Name: Name of the created S3 bucket.
• Bucket ARN: Amazon Resource Name of the S3 bucket.

Example output:

bucket_name = "my-demo-s3-bucket"
bucket_arn  = "arn:aws:s3:::my-demo-s3-bucket"

🎯 Summary of the Terraform Automation

Components and Their Purpose in the Workflow

In Simple Terms: How the Terraform Workflow Runs

“This project automatically creates an S3 bucket in AWS whenever you push code to GitHub.”

✅ Terraform Files Used in This Setup

1. main.tf (Example: Create an S3 Bucket with Terraform)

terraform {
  required_version = ">= 1.0"
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.0"
    }
  }
}
provider "aws" {
  region = var.aws_region
}
resource "aws_s3_bucket" "demo_bucket" {
  bucket = var.bucket_name
  tags = {
    Environment = "dev"
    Project     = "terraform-ci-cd"
  }
}

2. variables.tf for the Terraform Project

variable "aws_region" {
  type        = string
  description = "AWS region to create resources"
  default     = "ap-south-1"
}
variable "bucket_name" {
  type        = string
  description = "S3 bucket name"
}

3. outputs.tf in the Terraform Setup

output "bucket_name" {
  value = aws_s3_bucket.demo_bucket.bucket
}
output "bucket_arn" {
  value = aws_s3_bucket.demo_bucket.arn
}

4. GitHub Actions Pipeline for Terraform Automation

Create a folder .github/workflows/ and add the following YAML:

name: Terraform CI/CD
on:
  push:
    branches: ["main"]
  pull_request:
    branches: ["main"]
jobs:
  terraform:
    name: Terraform Apply Pipeline
    runs-on: ubuntu-latest
    permissions:
      contents: read
      id-token: write
    steps:
      - name: Checkout source code
        uses: actions/checkout@v3
      - name: Setup Terraform
        uses: hashicorp/setup-terraform@v2
      - name: Terraform Init
        run: terraform init
      - name: Terraform Format
        run: terraform fmt -check
      - name: Terraform Validate
        run: terraform validate
      - name: Terraform Plan
        run: terraform plan -input=false
      - name: Terraform Apply
        if: github.ref == 'refs/heads/main'
        run: terraform apply -auto-approve
        env:
          AWS_ACCESS_KEY_ID: ${{ secrets.AWS_ACCESS_KEY_ID }}
          AWS_SECRET_ACCESS_KEY: ${{ secrets.AWS_SECRET_ACCESS_KEY }}
          AWS_REGION: ${{ secrets.AWS_REGION }}

📌 Required GitHub Secrets for This Workflow

Navigate to:

GitHub → Repo → Settings → Secrets → Actions

Add the following secrets:

• AWS_ACCESS_KEY_ID

• AWS_SECRET_ACCESS_KEY

• AWS_REGION

🌟 Folder Structure for the Terraform Project

Your project folder should look like this:

terraform-demo/
│
├── main.tf
├── variables.tf
├── outputs.tf
│
└── .github/
    └── workflows/
        └── terraform.yml

🎉 Deploy the Project to GitHub

To deploy the project, run the following commands:

git add .
git commit -m "Initial Terraform CI/CD pipeline"
git push

Upon pushing, GitHub Actions will automatically:

• Init
• Validate
• Plan
• Apply
